Angle Control Valve

Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of angle control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade angle control valve from our factory.

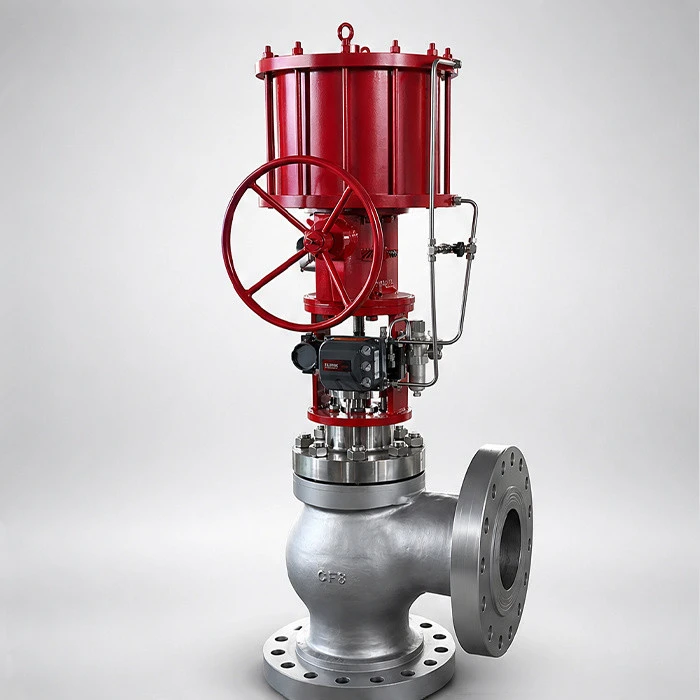

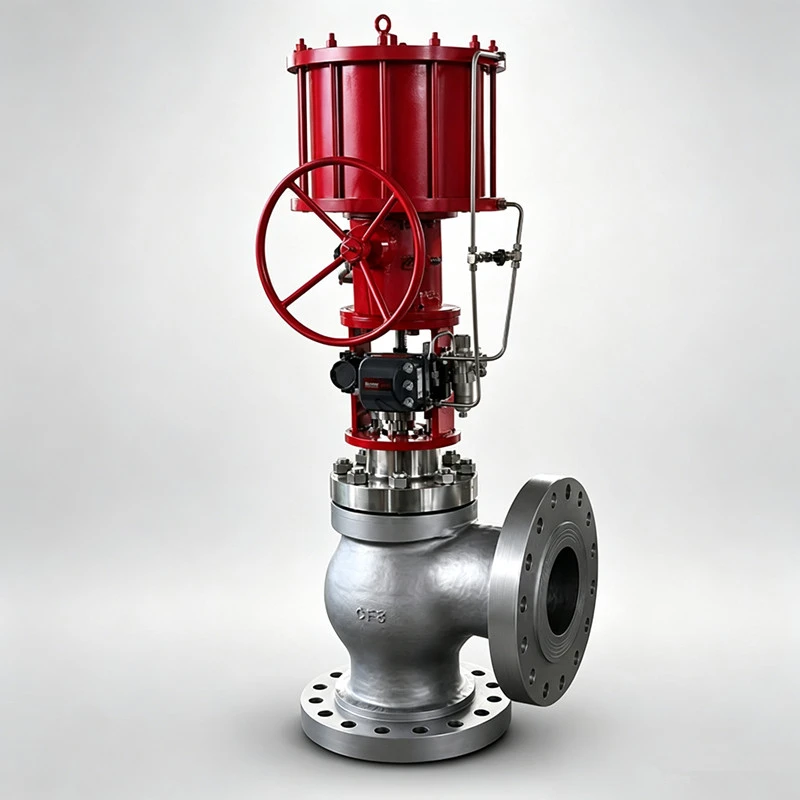

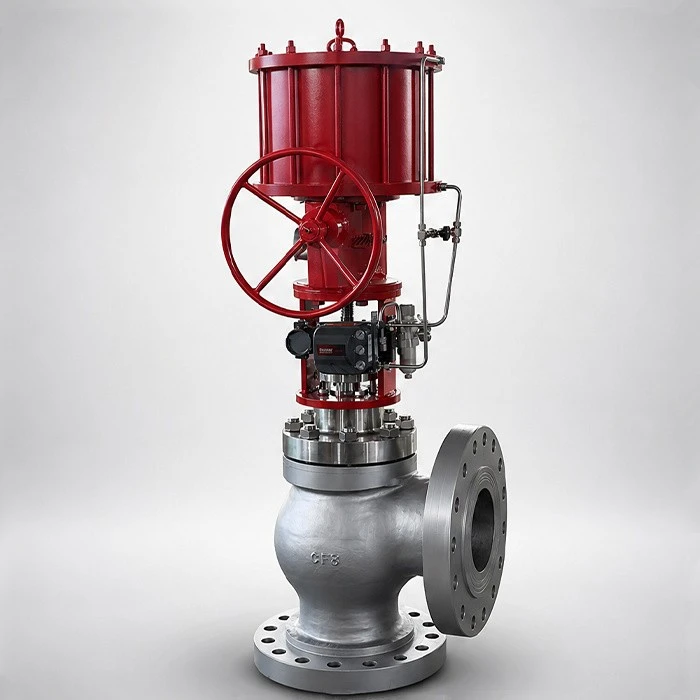

An Angle Control Valve is a linear control valve with an inlet and outlet arranged at an angle, usually 90 degrees. This structure changes the flow direction inside the valve body. It is often used where the medium is dirty, abrasive, high-pressure, or easy to damage normal straight-through valves.

Black water service is one of the hardest applications for this valve type. Black water usually contains solid particles, ash, slag, suspended solids, and corrosive components. The medium can cut the trim surface very fast. It can also wash the valve body, block small passages, and damage the sealing area. A normal globe control valve may fail quickly in this kind of service.

Yuhong black water Angle Control Valve is built for this difficult working condition. The angle body gives the medium a smoother discharge path and reduces direct impact on some key internal areas. The trim can use hardened material, special alloy, or wear-resistant surface treatment. The internal parts are also designed for maintenance. When the valve runs for a period, users can remove the valve, inspect the trim, and replace worn parts.

This product is not a "fit and forget" valve. Black water valves need planned maintenance. The real value is to make the service period longer, make maintenance easier, and reduce sudden shutdowns. Based on site feedback, Yuhong black water angle valves can run continuously for 125 days under suitable working conditions. This gives project buyers more confidence in high-wear slurry control systems.

Angle Body for Severe Flow Direction



The angle body is the first important feature. The medium enters from one direction and leaves from another direction. This structure is useful when the process needs pressure reduction, slurry discharge, or dirty medium control.

For black water service, flow direction matters. If the flow attacks the plug, seat, and body wall too directly, the trim may wear very fast. The angle body helps guide the medium in a more practical way. It also makes the valve more suitable for high-wear discharge points.

Wear-Resistant Trim



Black water can damage normal stainless steel trim quickly. Solid particles move at high speed and hit the plug and seat again and again. The trim must be stronger than the medium.

Yuhong can use hardened stainless steel, Stellite hard facing, tungsten carbide, ceramic, or other wear-resistant material based on the actual medium. The final choice depends on particle content, pressure drop, temperature, flow rate, and maintenance cycle.

Serviceable Internal Parts



This valve is designed with maintenance in mind. Black water angle valves need periodic inspection. Worn internal parts should be replaced before they cause larger damage.

The plug, seat, cage or guide parts can be designed as replaceable parts. This helps users control maintenance cost. It also helps distributors supply spare trim sets for long-term projects.

Strong Actuator for Dirty Service



Black water service may cause higher friction inside the valve. The actuator must have enough thrust to move the plug smoothly. A weak actuator may cause slow response, poor control, or valve sticking.

Yuhong engineers check pressure drop, medium condition, and trim structure before choosing the actuator. Pneumatic piston actuators are often used when higher thrust is needed.

This black water Angle Control Valve is mainly used in coal chemical plants, gasification systems, slurry discharge lines, ash water systems, and severe service liquid control points.

• In coal gasification projects, it can be used on black water letdown, high-pressure slurry discharge, and dirty liquid control lines.
• In ash water systems, it can help regulate abrasive liquid flow and reduce trim damage compared with basic control valve designs.
• In chemical plants, it can be used for dirty process liquids with particles, pressure drop, and erosion risk.
• In severe service control systems, it can replace normal globe valves that fail too quickly due to erosion, vibration, or blocked trim.

For EPC buyers and industrial distributors, this product is suitable for customers who already know the cost of frequent valve failure. It is easier to sell when the end user has site problems such as trim washout, short service life, or unplanned shutdown.

Yuhong Valve pays close attention to the trim and flow path of black water angle valves. The valve body must have enough strength. The internal flow area must be checked carefully. The plug and seat must be machined with good fit, but the design also needs to consider dirty medium and maintenance clearance.

Wear-resistant trim parts are checked before assembly. Hard facing, carbide parts, or ceramic parts must be handled carefully during machining and installation. A small mistake can shorten service life.

Each valve can go through shell pressure test, seat leakage test, stroke test, actuator movement test, and final inspection before delivery. For project orders, Yuhong can supply drawings, material certificates, test reports, inspection photos, and packing photos.

The production follows ISO 9001 quality management. The valve can be made according to IEC 60534, ASME, ANSI, GB, and other project standards.

Black water angle valves need regular maintenance. This should be made clear before purchase. The medium is too harsh for any valve to run forever without internal wear.

Yuhong can support buyers with spare plug, seat, guide parts, gaskets, packing, and actuator repair kits. For long-term users, we suggest keeping one set of key trim parts on site. This can shorten downtime during shutdown maintenance.

We keep technical records for the original valve. If the customer needs spare parts later, our team can check the valve size, material, trim structure, and order data. This makes repeat supply easier and reduces the risk of wrong spare parts.

Black water angle valves are heavy-duty products, so the packing must protect both the valve body and the actuator. Yuhong uses export wooden cases. The valve is fixed inside the case to reduce movement during transport.

Flange faces are covered. The actuator, positioner, and accessories are protected from impact. For sea shipment, moisture-proof packing can be added. Shipping marks, order number, product model, and customer labels can be printed on the wooden case.

Packing photos can be provided before shipment. This helps buyers check goods before loading and makes warehouse receiving easier.

Black water service is not a normal valve application. Buyers usually worry about short service life, trim damage, long downtime, spare parts supply, and site complaints. Yuhong handles these points from the early technical stage.

Our engineers check the medium first. Particle content, pressure drop, temperature, flow range, and installation position all affect valve life. These data help us decide the trim material, flow path, actuator thrust, and maintenance plan.

We also make the maintenance issue clear. The valve is designed for periodic trim inspection and replacement. This helps buyers prepare spare parts before the next shutdown instead of waiting for failure.

For distributors and project contractors, Yuhong can provide technical sheets, drawings, inspection reports, product photos, and spare parts lists. These documents help you explain the valve to end users and reduce technical back-and-forth during the deal.

Black water angle valves need real engineering experience. A low-price general valve may look acceptable at the buying stage, but it can fail quickly after installation. Yuhong focuses on the details that decide field life: flow path, trim material, actuator thrust, and serviceable internal structure.

Our 125-day field operation feedback gives buyers a clear reference. It is not a lab claim. It comes from real black water service under matched working conditions. This matters to plants that need fewer shutdowns and more predictable maintenance.

Yuhong also helps buyers plan the full valve life cycle. The valve can be supplied with spare trim parts, drawings, inspection reports, and order records. When the valve is removed for maintenance, matching parts can be prepared in advance.

For distributors and project contractors, this product is a strong severe-service option. It helps you serve customers who are not only asking for price, but also asking for a valve that can survive difficult media.

Yuhong Valve gives you factory production, technical checking, export packing, document support, and spare parts supply. For black water systems, these points are often more important than a simple unit price.

Expert Valve Selection

Do you need an Angle Control Valve for black water, slurry, or severe erosion service?

Send your medium details, solid content, temperature, inlet pressure, outlet pressure, flow range, pipe size, and current valve problem to Yuhong Valve. Our engineers will review the working condition and prepare a black water angle valve proposal for your project.
