PTFE-lined Control Valve

Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of ptfe-lined control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade ptfe-lined control valve from our factory.

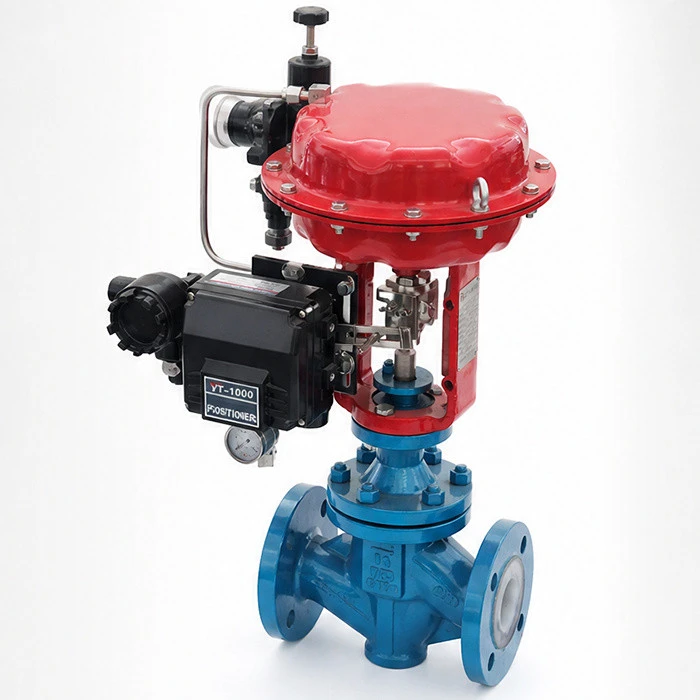

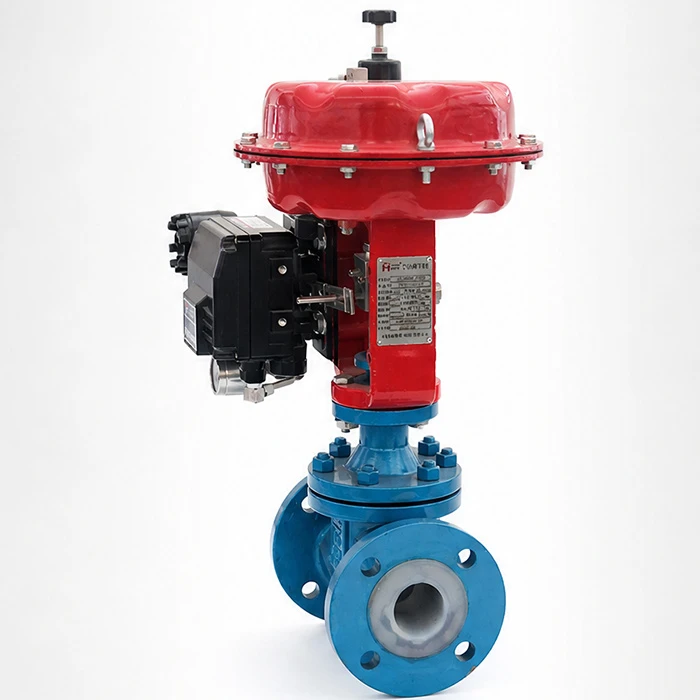

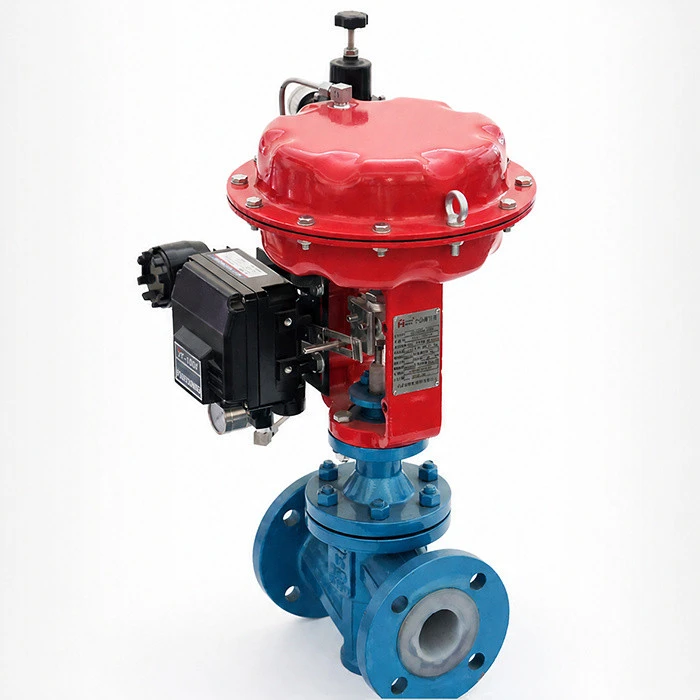

A PTFE-lined Control Valve is a linear control valve with fluoropolymer lining on the wetted surface. The metal valve body gives the valve mechanical strength. The PTFE lining protects the internal surface from direct contact with corrosive media.

This valve is widely used in chemical production, acid and alkali handling, chlor-alkali systems, water treatment chemicals, pharmaceutical processes, and corrosive liquid control lines. It is a practical choice when the medium may corrode normal metal valves, but the buyer still needs accurate flow regulation.

The lining is the most important part of this valve. It must be smooth, complete, and well protected during assembly. If the lining is damaged, the corrosive medium may reach the metal body and cause leakage or early failure. Yuhong checks the lining surface, flange area, sealing position, trim movement, and leakage performance before delivery.

For some special media, stem sealing also needs more attention. Chlorine, strong acid vapor, toxic gas, or volatile chemical fluid may create safety risk if leakage appears around the stem. In these cases, Yuhong can add a bellows sealed bonnet. The bellows works as the first sealing barrier, and the packing works as the second barrier. This structure gives the valve better leakage protection in more sensitive process lines.

Before production, our engineers review the medium name, concentration, temperature, pressure, flow range, pipe size, and sealing requirement. These details help us decide the lining material, trim structure, actuator type, and whether a bellows seal is needed.

Fluorine Lining for Corrosion Resistance



The main value of a PTFE-lined Control Valve is corrosion protection. The medium touches the fluoropolymer lining instead of the metal body. This design helps the valve handle many acids, alkalis, salt solutions, and corrosive chemical fluids.

For chemical plants, this can reduce body corrosion and extend the service period of the valve. It also helps lower the risk of rust, metal pollution, and leakage caused by chemical attack.

Protected Wetted Parts



The body cavity, flow path, and key wetted parts can be lined or protected based on the service condition. This keeps the corrosive medium away from the metal surface as much as possible.

The lining must stay complete during valve movement. Yuhong checks the plug, seat, stem area, and flow passage during assembly. The valve should open and close smoothly without scratching or pulling the lining.

Optional Bellows Seal for Hazardous Media



For normal corrosive liquid service, a standard packing structure may be enough. For special media such as chlorine, toxic gas, volatile chemical fluid, or strong odor media, buyers often ask for higher stem sealing safety.

Yuhong can supply a bellows sealed structure for these working conditions. The bellows helps block the medium before it reaches the packing area. The packing remains as backup protection. This design can reduce leakage risk and improve site safety.

Material Choices for Different Chemical Lines



Different corrosive media need different lining and sealing plans. PTFE is widely used for many chemical fluids. PFA and FEP can also be discussed when the project needs different temperature resistance, surface quality, or process requirements.

Our engineers check the medium and concentration before giving a proposal. This matters more than using one standard model for every chemical line.

Yuhong Valve treats the lining process as a key quality point. The valve body must be prepared before lining. The lined surface should be smooth and complete. The flange face, seat area, and flow passage need careful inspection because these areas affect sealing and service life.

During assembly, the trim must be installed with care. The plug and seat should move correctly. The actuator stroke should not damage the lining. The stem sealing area is also checked, especially when the valve uses a bellows sealed bonnet.

Each valve can go through shell pressure test, seat leakage test, stroke test, and final inspection before delivery. For special projects, lining inspection, pinhole testing, material certificates, pressure test reports, and packing photos can be supplied.

Production follows ISO 9001 quality management. Products can be made according to IEC 60534, ASME B16.34, ASME B16.5, ANSI/FCI 70-2, GB, and project standards.

PTFE-lined valves need careful packing because the lining surface must stay clean and undamaged. Yuhong covers the flange faces before packing. This helps keep dust, water, and hard objects away from the inside of the valve.

The valve is fixed in an export wooden case. The actuator and accessories are protected from impact. For long-distance sea shipment, moisture-proof packing can be added.

If the valve is used for special clean or hazardous media service, packing requirements can be discussed before shipment. Product model, size, order number, and shipping marks can be placed on the wooden case for easier receiving.

Buyers of lined control valves usually worry about corrosion, lining damage, sealing safety, and wrong material choice. Yuhong reviews the process data before production. The medium name, concentration, temperature, flow range, pressure, and leakage requirement all help us make a safer valve plan.

For common corrosive liquids, we focus on lining quality and trim movement. For hazardous media, we also check stem sealing risk. If the medium is chlorine, toxic gas, volatile fluid, or strong odor chemical, a bellows sealed bonnet can be recommended.

Yuhong also keeps order records, drawings, lining material details, and test information. This helps distributors and project buyers manage repeat orders and spare parts supply more easily.

A PTFE-lined Control Valve depends on details that cannot be seen from outside. The lining must be smooth. The sealing area must be protected. The trim must move without hurting the lined surface. Yuhong checks these points during production and assembly.

For chemical service, our team does not only ask for size and pressure. We also ask what the medium is, how strong the concentration is, and whether the fluid is toxic, volatile, or easy to crystallize. These details help us choose a better lining and sealing plan.

For special media such as chlorine or strong odor chemicals, a bellows sealed structure can be added to improve safety. This gives buyers one more layer of protection and helps reduce after-sales risk.

Yuhong can support distributors and project buyers with drawings, technical sheets, test reports, product photos, packing photos, and order records. Repeat orders can also follow the same lining and sealing requirements.

For buyers who need corrosion resistance, safer sealing, and clear factory support, Yuhong PTFE-lined Control Valve is a practical choice for chemical flow control projects.

Expert Valve Selection

Do you need a PTFE-lined Control Valve for acid, alkali, chlorine-related, or other corrosive media service?

Send your medium name, concentration, temperature, pressure, flow range, pipe size, and sealing requirement to Yuhong Valve. Our engineers will review your working condition and prepare a valve proposal for your project.
