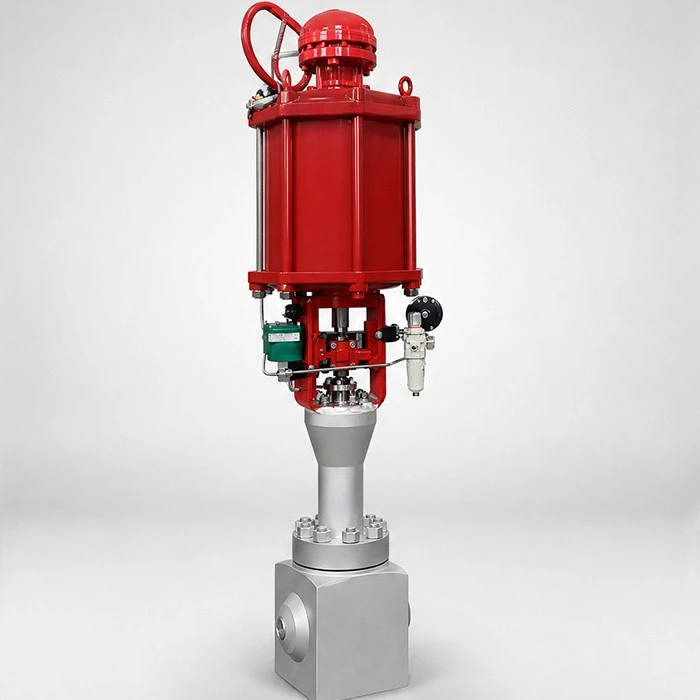

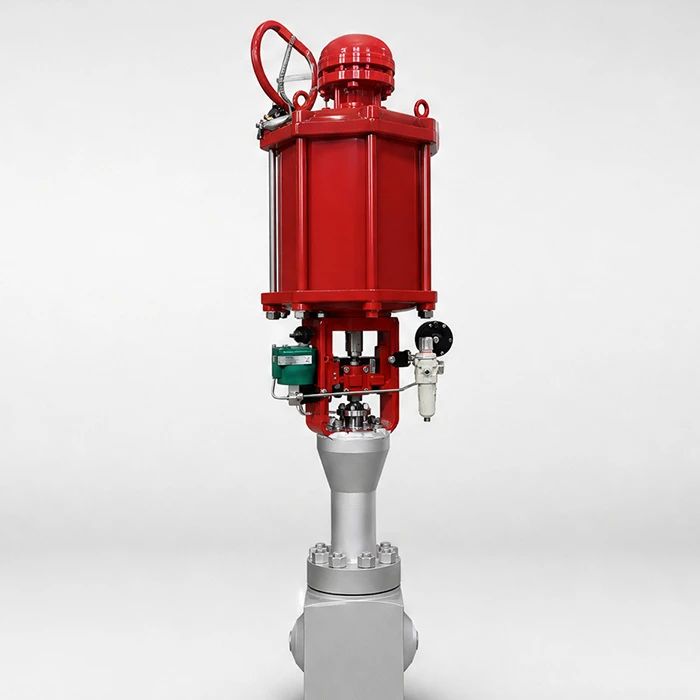

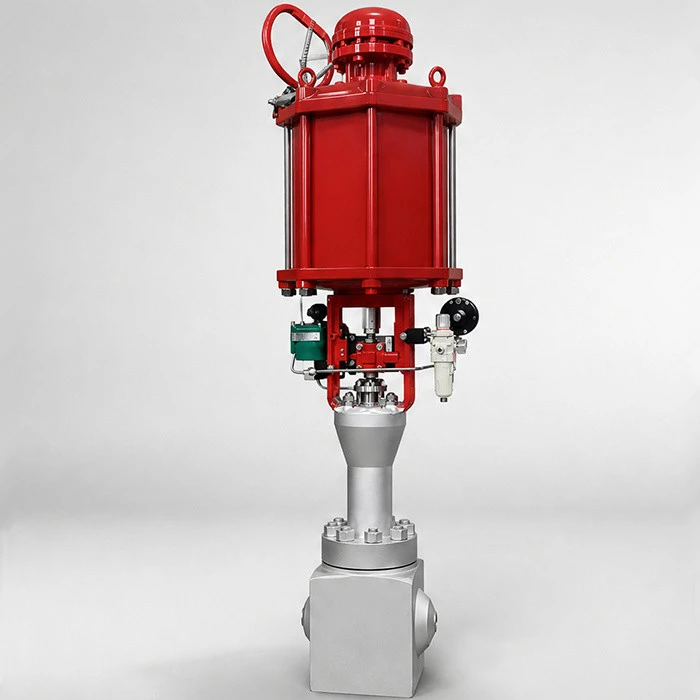

High Pressure Control Valve

Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of high pressure control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade high pressure control valve from our factory.

A high pressure control valve regulates flow, pressure, temperature, or level in pipelines that run at high pressure or across a large pressure differential - conditions where pressure and velocity sit well above ordinary industrial service.

Standard valves fail here. When pressure drops across the trim, fluid velocity spikes and the trim takes the hit: erosion, cavitation, flashing, vibration, and noise. The wrong body structure wears internal parts fast, leakage climbs, and the actuator goes unstable.

Yuhong builds these valves for exactly that regime. The body is rated for the pressure class; the trim is chosen from the process data. Balanced, multi-stage, anti-cavitation, or low-noise trim - whichever the application needs.

Before production we calculate the required Cv from your operating conditions. When the needed Cv is below line capacity, we keep the body to pipe size and redesign the internal flow passage and trim to hit the target flow. You get correct control without resizing the pipe.

Heavy-Duty Body



High pressure takes more than a thicker wall. Casting quality, wall thickness, stress distribution, and machining accuracy decide how long the valve holds up. We pick body material by pressure class and temperature, and inspect every casting before machining to catch hidden defects early.

Trim Built for Severe Service



The trim is the part that does the work. Different services need different trim:

• Pressure-balanced trim cuts actuator thrust
• Multi-stage trim controls cavitation
• Low-noise cages handle high-velocity gas
• Erosion-resistant materials suit flashing liquids

We match the trim to the process instead of forcing one design on every job.

Longer Service Life



High pressure means high velocity, and fast media wears the plug and seat. Stellite hard facing or tungsten carbide on the sealing surfaces outlasts standard stainless and stretches the interval between shutdowns.

Stable Control



High-pressure systems swing pressure often. A trim designed for the job lets the valve travel smoothly across its full stroke instead of snapping open or shut. Smooth travel holds the process on setpoint and spares the actuator.

Every valve runs through controlled production:

• Castings inspected before machining
• Sealing surfaces CNC-machined to spec
• Hard-faced trim re-inspected after welding
• Hydrostatic shell test, seat leakage test, stroke test, and actuator calibration before shipment

We supply material certificates, inspection reports, pressure test records, and factory photos for your project file.

High-pressure valves are heavy. Each one is braced inside a reinforced export wooden case. Sealing faces get flange covers; actuators are crated separately when needed. Every package is tagged with product ID, order number, size, pressure rating, and your shipping marks.

Pressure rating is only part of the picture. Review these together before you order:

• Medium
• Working temperature
• Inlet pressure (P1)
• Outlet pressure (P2)
• Flow rate
• Pipe size
• Required leakage class
• Maximum pressure drop

These values decide whether you need balanced, anti-cavitation, low-noise, or multi-stage trim. Send complete operating data up front and you avoid redesign later.

A valve that is fine in ordinary service can fail fast once pressure, velocity, or pressure drop climb. We do not just pick a pressure rating - we study the conditions first: pressure differential, Cv, flow velocity, and cavitation or flashing risk. Then we specify the trim, not a default config.

That matters across the project chain:

• EPC contractors get fewer commissioning problems and no surprise shutdowns at start-up.
• Plant operators get longer trim life, fewer stops, and lower spare-part use.
• Distributors get a severe-service line that pairs with high-value accessories.
• End users get sizing done right - oversized Cv hunts and loses accuracy; undersized Cv caps production. We calculate Cv from your real operating data and tune the trim to it.

We back every order with documentation: material certs, inspection reports, pressure test records, dimensional drawings, and packing photos. For distributors we keep full production records, so repeat orders, spares, and expansion stay simple.

Expert Valve Selection

Running power, petrochemical, oil & gas, or other severe service?

Send us medium, temperature, inlet and outlet pressure, flow rate, pipe size, and pressure class. We will calculate the Cv and recommend the trim that fits your job.
