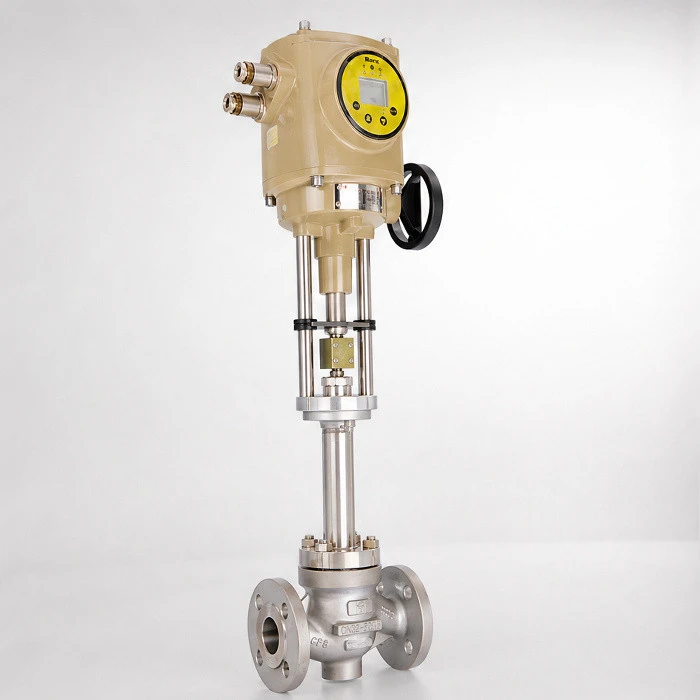

Cryogenic Control Valve

Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of cryogenic control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade cryogenic control valve from our factory.

A Cryogenic Control Valve is used when the fluid temperature is far below normal plant conditions. These valves are often installed on liquid nitrogen, liquid oxygen, liquid argon, LNG, and cold gas lines. In this kind of service, a standard control valve may not last long. The body material may lose toughness. The stem area may ice up. The packing may become hard, and the valve may start to leak or move badly.

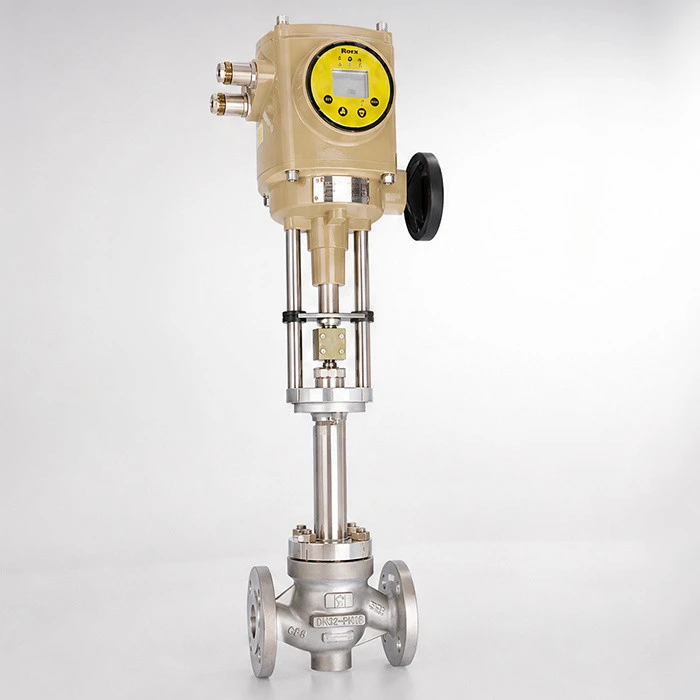

The extended bonnet is the most visible part of this valve. It lifts the packing box away from the cold valve body. This gives the packing a warmer working area and helps the stem move more freely. For a plant operator, this small design change can reduce many common field problems, such as frozen packing, stem leakage, unstable stroke, and difficult maintenance.

Low-temperature media also change the way metal parts behave. The plug, seat, stem, and guide parts must keep the right clearance after cooling. If the fit is too tight, the valve may stick. If the fit is too loose, the valve may not control well. Yuhong checks these points during design and assembly, especially for LNG and industrial gas projects.

For liquid oxygen service, cleanliness is just as important as strength. Oil, grease, and dirty particles should not stay inside the valve. When the project requires oxygen cleaning, the parts are cleaned and protected before packing. This helps buyers reduce safety concerns before the valve reaches the site.

Before production, we ask for the real working data. The medium name, temperature, pressure, flow range, pipe size, leakage class, and cleaning requirement all matter. These details help us decide the bonnet length, trim material, seat design, sealing structure, and test requirements. The goal is simple: the valve should work smoothly in the cold line, not only pass a drawing review.

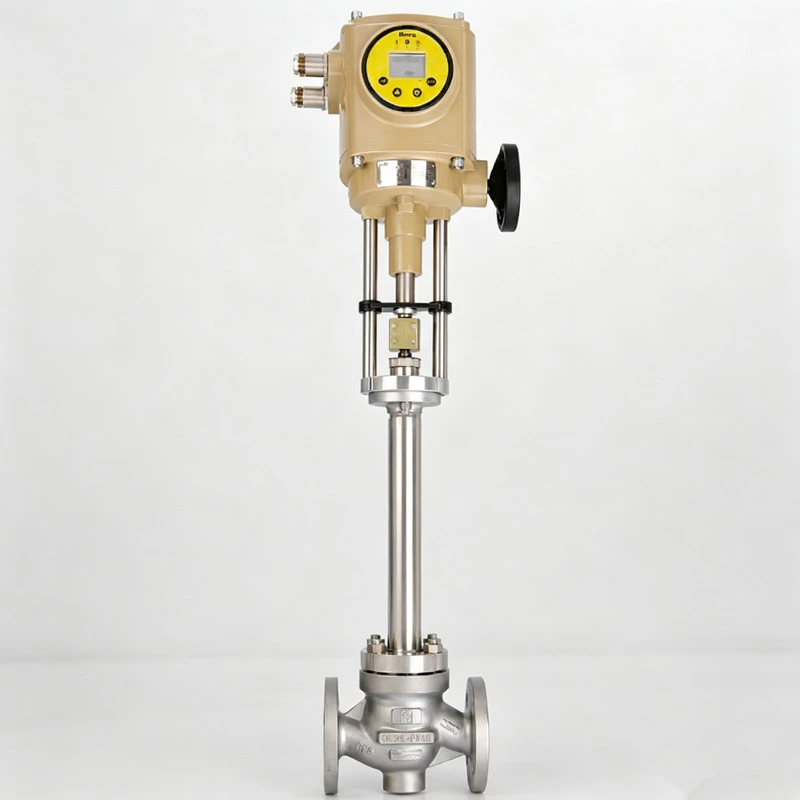

Extended Bonnet for Packing Protection



The extended bonnet is one of the most important parts of a Cryogenic Control Valve. The cold medium stays near the valve body and lower trim area. The packing box is moved upward through the long bonnet neck.

This design helps protect the packing from freezing. It also helps keep the actuator and positioner away from the cold zone. The stem can move more smoothly, and the valve can keep better control during long-term service.

Low-Temperature Material Selection



Cryogenic valves need materials that can keep toughness at low temperature. Austenitic stainless steel is often used for liquid nitrogen, LNG, liquid oxygen, and liquid argon service. The trim material must also be checked based on temperature, pressure drop, and medium type.

For buyers, material choice is not only a technical detail. It affects valve safety, sealing life, and repeat performance. A wrong material may become brittle in cold service. This can bring serious site risk.

Cleaner Design for Liquid Oxygen Service



Liquid oxygen service needs strict oil and grease control. Oil residue may create safety risk when it contacts oxygen-rich media. For this reason, LOX valves should be cleaned and packed with higher care.

Yuhong Valve can provide oxygen cleaning treatment according to project requirements. Parts can be degreased, dried, checked, and sealed before delivery. The packing process also needs to keep the valve clean before installation.

Stable Trim Movement in Cold Conditions



Metal parts shrink at low temperature. The plug, seat, stem, and guide parts must keep proper clearance after cooling. If the clearance is too tight, the trim may jam. If it is too loose, control accuracy and leakage performance may be affected.

Yuhong checks the trim structure during design and assembly. For special cryogenic projects, low-temperature treatment or low-temperature testing can be discussed before production.

A Cryogenic Control Valve gives value in three areas: safety, stability, and cost control.

• First, the extended bonnet helps reduce packing freezing and stem leakage. This is important for LNG, liquid nitrogen, and liquid oxygen systems. A frozen packing area can cause poor movement and leakage. It may also increase maintenance work on site.
• Second, the valve can be designed based on real flow data. Cryogenic liquids are expensive and easy to vaporize under pressure drop. A poorly matched trim may cause unstable flow, flashing, noise, and liquid loss. Yuhong engineers check the Cv value and trim capacity before production, so the valve can work closer to the real process demand.
• Third, the product is useful for distributors and project suppliers. Cryogenic valves are not common low-price valves. They are often used in high-value gas projects. A reliable valve package can help buyers win better projects and reduce after-sales risk.

Yuhong Valve controls the key production steps for cryogenic control valves. The body, bonnet, stem, plug, seat, and trim parts are machined according to drawings. The extended bonnet height is checked because it affects packing temperature and installation space.

During assembly, the stem movement must be smooth. The trim should not rub or jam. The packing area must be clean. For oxygen service, oil-free cleaning steps can be added before final packing.

Each valve can go through shell pressure test, seat leakage test, stroke test, actuator movement test, and final appearance inspection. For project orders, material certificates, pressure test reports, inspection photos, and packing photos can be supplied. Low-temperature test or third-party inspection can also be discussed before order confirmation.

Cryogenic valves need clean and strong packing. After testing, the valve is dried before packing. Flange faces are covered to stop dust and moisture from entering the valve. The actuator and accessories are fixed inside the wooden case to reduce shaking during transport.

For sea shipment, moisture-proof film and desiccant can be added. For oxygen service valves, sealed packing can be used after cleaning. Shipping marks, model number, size, order number, and customer label can be marked on the wooden case. This helps buyers check the goods quickly after arrival.

Cryogenic valve buyers care about safety first. They also care about delivery, documents, packing, and repeat order stability. Yuhong Valve checks the medium and temperature before production. We also review pressure data, flow range, and leakage requirement. This helps us make a more suitable trim and bonnet design.

We keep drawings, material records, and order files for each project. If the customer orders spare parts or repeat valves later, the same technical file can be used. This is helpful for distributors and project contractors.

Cost is also important. A cryogenic valve may cost more than a standard control valve, but it can reduce leakage risk, product loss, frozen packing problems, and shutdown trouble. For LNG and industrial gas projects, this long-term value matters more than the lowest unit price.

Cryogenic service leaves little room for mistakes. A small problem with material, packing height, cleaning, or trim clearance may turn into leakage, frozen stem movement, or site shutdown. Yuhong Valve pays attention to these details before the valve reaches your project.

Our team reviews the real low-temperature data before production. The medium, working temperature, pressure drop, flow range, and leakage class are checked together. This helps us decide the bonnet length, trim material, seat structure, and cleaning requirement in a more practical way.

For liquid oxygen service, cleanliness is handled with extra care. Oil and grease control can be arranged according to project needs. The valve can also be dried, sealed, and packed to reduce contamination before installation.

For project buyers and distributors, documents are often just as important as the valve itself. Yuhong can provide drawings, material certificates, test reports, inspection photos, and packing photos. These files help your customer check the order faster and reduce approval delays.

Repeat orders are also easier to manage. We keep technical records for valve size, material, trim design, bonnet type, and order requirements. When buyers need spare parts or the same valve again, the previous data can be traced and reused.

Yuhong Valve is a good choice for buyers who need more than a low price. You get a cryogenic control valve built for real cold service, with technical support, export packing, and clear order documents behind it.

Expert Valve Selection

Do you need a Cryogenic Control Valve for liquid nitrogen, liquid oxygen, LNG, or other low-temperature service?

Send your medium, working temperature, inlet pressure, outlet pressure, flow range, pipe size, and leakage requirement to Yuhong Valve. Our engineers will review your data and prepare a valve proposal for your project.
