Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of sleeve guided control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade sleeve guided control valve from our factory.

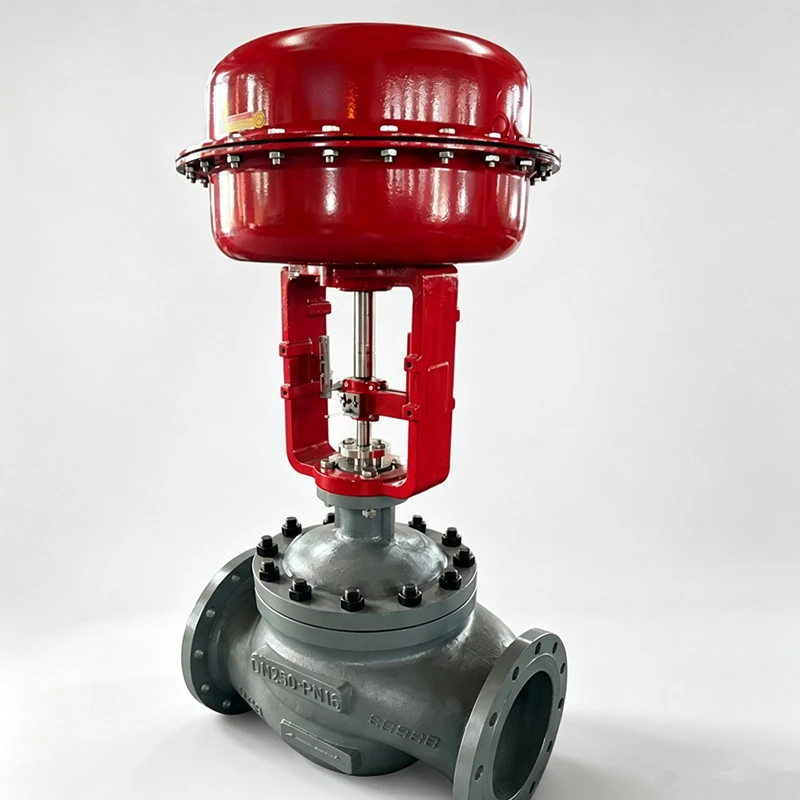

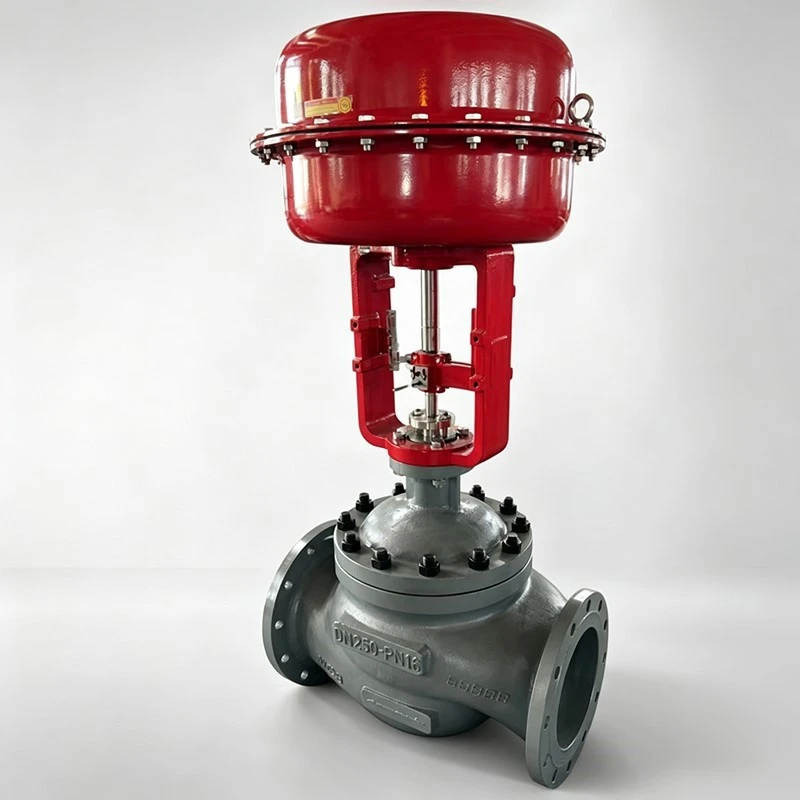

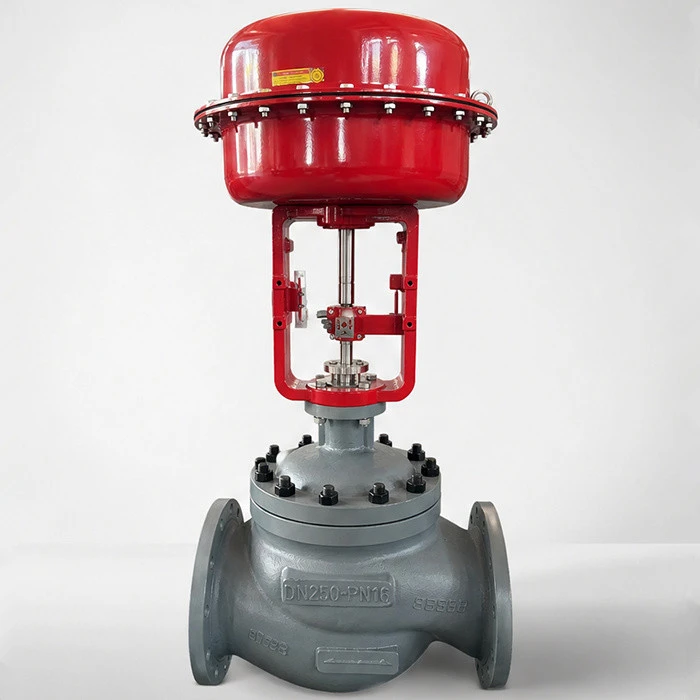

A Sleeve Guided Control Valve is a linear motion valve. Control systems use it to manage flow, pressure, temperature, or liquid level.
When the valve works, the internal sleeve holds and guides the valve plug constantly. This design stops vibration, cuts down side forces, reduces trim wear, and stops shaky movement under high pressure drops or changing flows.
How To Avoid "Oversized Valve" Problems
For many industrial projects, the biggest risk is choosing the wrong valve trim size, not the product quality itself.
Many people choose a valve size based only on the pipe diameter. This is a mistake. If the CV is too big, the valve will open just a tiny bit during work. This makes the valve jump up and down, lowers control accuracy, creates high noise, and makes the actuator move too many times. If the CV is too small, the valve blocks the flow and lowers plant production.
Yuhong Valve engineers check your technical details before we build the valve. We calculate the exact CV value using your real process data:
· Type of fluid and temperature
· Inlet pressure and outlet pressure (P1 and P2)
· Minimum, normal, and maximum flow rates
After we get the calculation results, we optimize the flow path, pick the right trim, or use a reduced trim design to match your pipe system perfectly.
Technical Parameters
|
Item |
Standard Options & Custom Range |
|
Product Name |
Sleeve Guided Control Valve / Cage Guided Control Valve |
|
Valve Type |
Linear motion globe control valve |
|
Size Range |
DN15 - DN400 / 1/2" - 16" |
|
Pressure Rating |
PN16 - PN160 / ANSI Class 150 - Class 900 |
|
Body Material |
WCB, CF8, CF8M, WC6, WC9, Duplex Stainless Steel, Special Alloy |
|
Trim Material |
Stainless steel, hardened stainless steel, Stellite overlay, custom alloy |
|
Seat Type |
Metal seat / Soft seat (based on your working conditions) |
|
Flow Characteristic |
Equal percentage, linear, quick opening |
|
Connection Type |
Flanged (RF, RTJ), Butt weld (BW), Socket weld (SW) |
|
Actuator Type |
Pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator |
|
Accessories |
Smart positioner, air filter regulator, limit switch, solenoid valve, handwheel |
|
Applicable Media |
Steam, water, gas, oil, chemical liquids, industrial fluids |
|
Leakage Class |
Meets ANSI/FCI 70-2 (Class IV, V, or Class VI zero-leakage) |
|
Design & Testing |
IEC 60534, ASME B16.34, ASME B16.5, ANSI/FCI 70-2, GB standards |
|
Quality System |
ISO 9001 quality management system |
Product Advantages
Stable Control Under Changing Conditions
The sleeve structure holds the valve plug tightly when fluid flows through. This is very important when fluid speed is high, pressure drops are large, or flow changes fast. This sleeve design stops plug shaking and uneven wear better than a simple plug guide. Users get smoother control, less noise, and less risk of sudden shutdowns.
True CV Calculation Before We Build
We do not sell control valves based only on your pipe size. Our engineers check all your process numbers first. We calculate the exact CV value to pick the correct valve size, trim design, flow style, actuator, and positioner. The right size means the valve works smoothly and reliably after installation.
Different Trims for Different Jobs
- For Steam: We use hardened trim materials and special designs to stop wear and make the valve last longer.
- For Chemicals: We offer corrosion-resistant bodies and alloy trims to stop chemical damage.
- For High Pressure Drops: We use low-noise sleeves or balanced trims to keep the valve quiet and stable.
Application Solutions
Factories use this valve in petrochemical plants, thermal power stations, natural gas lines, water treatment setups, paper mills, steel plants, and general factory lines.
· Petrochemicals: The valve controls flow and pressure for liquids or gases.
· Power Generation: The valve manages steam, condensate water, and utility lines.
· Water Treatment: The valve keeps flow rates steady and stops energy waste.
· Automation Systems: The valve works with pneumatic or electric power to connect directly to your DCS and PLC systems.
Distributors and wholesalers like this product because it is highly flexible. You can combine different sizes, materials, and parts to sell to many local customers.
Manufacturing & Quality Control
Yuhong Valve is a real factory, not a trading company. We machine all key parts on CNC tools to keep dimensions exact.
Every single control valve goes through these tests before shipping:
- Shell water pressure test
- Seat leakage test (strictly follows ANSI/FCI 70-2)
- Stroke movement and actuator response test
- Final check for look and size
We can also give you material test reports, non-destructive testing (NDT) reports, or let third-party inspectors watch the tests if your project needs it.
FAQ
Q1: Why is a Sleeve Guided Control Valve better?
A: It is highly stable. The sleeve holds the plug tightly during movement, so it stops vibration, cuts down trim wear, and gives smooth control under high pressure.
Q2: Can you calculate the CV value for my project?
A: Yes, we can. Please send us your fluid type, working temperature, inlet and outlet pressure, flow rate, and pipe size. Our engineers will do the calculations for you.
Q3: Can I use this valve for steam?
A: Yes. We use high pressure ratings, hardened trim steels, and longer valve bonnets to handle hot steam easily.
Q4: What actuators do you offer?
A: We have pneumatic diaphragm actuators, pneumatic piston actuators, and electric actuators. We also supply smart digital positioners.
Q5: Can you customize the materials or connection types?
A: Yes, we can. We can change the body steel, trim material, flange standards (ANSI, DIN, JIS), weld ends, and test paperwork based on your request.
After-Sales Service & Technical Support
Before You Buy
We check your line conditions to find the right valve model and calculate the CV for free.
During Production
We send you size drawings and technical updates to check.
After Delivery
We help you with installation tips, setup advice, and spare parts. If a quality problem happens, we fix it or send replacements quickly.
Why Choose Yuhong Valve
Industrial buyers need the right technical choice, steady quality, clear paperwork, and fast answers. Yuhong Valve has a real factory and real engineers. We make sure you get a valve that fits your system and works perfectly.
Expert Valve Selection
Do you need a reliable Sleeve Guided Control Valve factory for your project or your stock?
Send us your fluid type, temperature, pressure, flow rate, and pipe size today. Yuhong Valve engineers will calculate the correct CV value and send you a custom selection and price quote.
