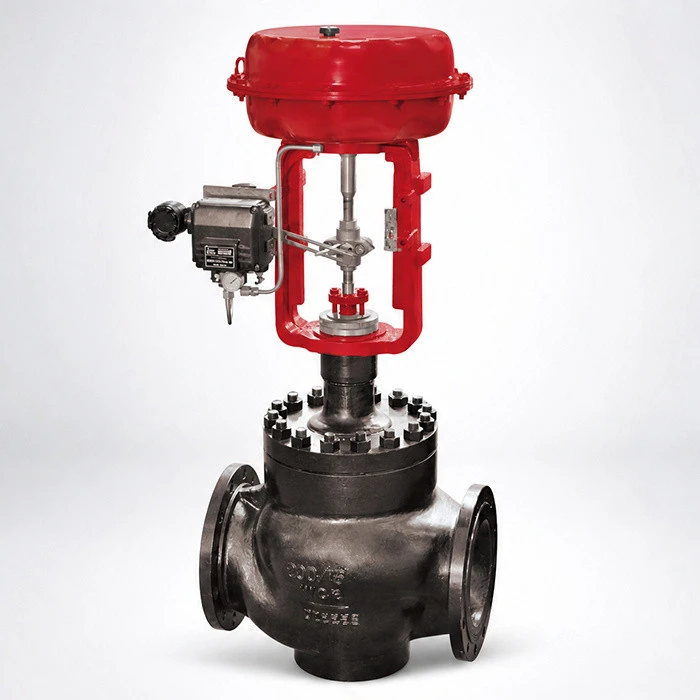

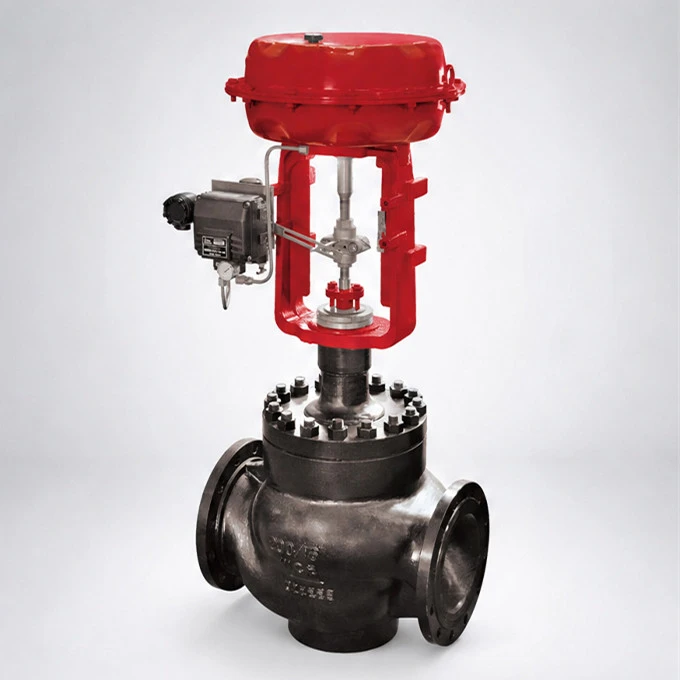

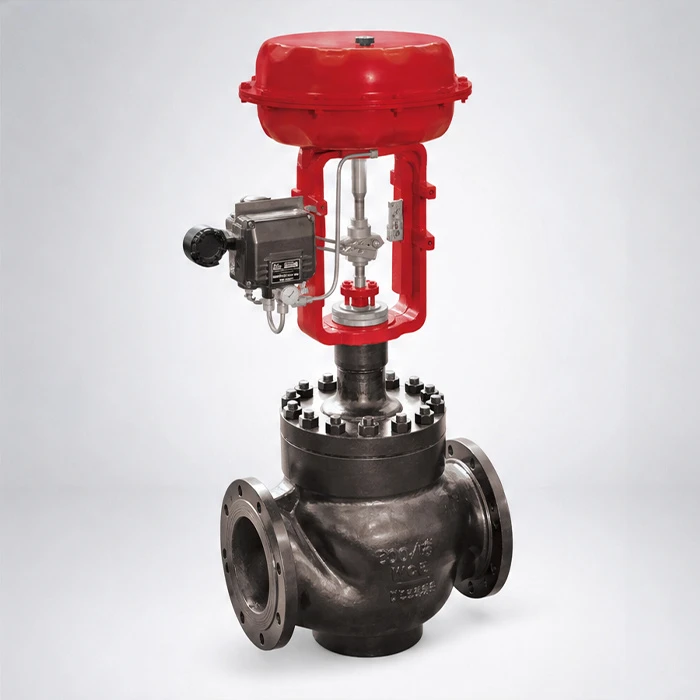

Low Noise Cage Guided Control Valve

Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of low noise cage guided control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade low noise cage guided control valve from our factory.

A Low Noise Cage Guided Control Valve is a linear control valve used for flow, pressure, and temperature control. The valve uses a cage-guided trim structure. The cage supports the plug during movement and also controls how the medium passes through the valve.

The main value of this valve is noise reduction. In many process systems, high pressure drop creates fast fluid speed. Fast fluid speed can cause loud noise, vibration, cavitation, flashing, and quick damage to the valve trim. A normal control valve may work for a short time, but it may bring heavy site complaints later.

Yuhong Low Noise Cage Guided Control Valve uses a multi-hole cage or special low noise cage. The medium passes through many small holes or channels. The pressure drop is split into smaller steps. The fluid speed becomes easier to control. The valve can reduce noise and protect the plug, seat, cage, and downstream pipeline.

Our engineers check the real working data before production. We review medium, temperature, inlet pressure, outlet pressure, flow rate, pipe size, and required noise level. Then we calculate the Cv value and check the trim structure. If the pipeline size is fixed but the required Cv is smaller, we can use reduced trim or change the internal flow path. This makes the valve work in a better opening range.

Low Noise Cage Design



The low noise cage is the core part of this valve. The cage has many holes or special channels. The medium does not pass through one large opening. It passes through many smaller passages. This design helps reduce fluid impact and lowers noise at the source.

For buyers, this means fewer site complaints and better plant working conditions. It also helps protect the downstream pipeline and nearby instruments.

Stable Cage-Guided Plug



The cage supports the plug during the full stroke. The plug does not shake easily when pressure changes fast. This design helps keep the control signal more stable. It also reduces wear on the stem, packing, and seating surface.

A stable trim is important for long-term use. It helps the valve keep good control after many opening and closing cycles.

Cv Calculation and Trim Matching



Yuhong Valve does not only make the valve based on pipe size. The pipeline size is usually fixed by the project. The key point is the Cv value and the trim design inside the valve.

Our engineers calculate Cv from the customer's real data. We check minimum flow, normal flow, maximum flow, pressure drop, medium state, and temperature. Then we match the cage opening, plug type, seat size, and actuator thrust. This helps avoid poor control caused by oversized internal trim.

Options for Severe Service



Some working conditions need more than a normal low noise design. High pressure steam, gas let-down service, or large pressure drop water systems may need special trim. Yuhong Valve can offer multi-stage pressure reduction, hardened trim, Stellite hard facing, or special alloy parts based on the site condition.

A Low Noise Cage Guided Control Valve helps buyers solve several real problems.

• First, it helps reduce noise. Many plants have strict noise limits. A noisy valve can cause worker complaints and safety concerns. A low noise control valve can reduce this risk from the valve structure.
• Second, it helps extend trim life. High-speed medium can cut the plug and seat like a sharp tool. The low noise cage reduces flow impact. This helps lower trim wear and reduce maintenance cost.
• Third, it helps improve control stability. The cage-guided structure keeps the plug aligned. The valve can respond better to positioner signals. This gives the control loop a more stable result.
• Fourth, it helps project buyers lower after-sales risk. A valve that is too noisy or unstable after installation can damage the buyer's reputation. Yuhong Valve checks working conditions before production and gives technical support during order communication.

This valve is used in systems where noise and vibration must be controlled.

• In power plants, it can be used for steam pressure control, condensate water control, feedwater systems, and auxiliary steam lines.
• In oil and gas projects, it can be used for gas pressure let-down stations, clean gas regulation, and pressure control points with high pressure drop.
• In chemical plants, it can control clean liquid, gas, steam, and process fluids where stable control is needed.
• In water treatment and industrial utility systems, it can be used for pressure reduction and flow control when water hammer, noise, or vibration must be reduced.

For distributors, this product can be sold as a higher-value solution. It is not a basic control valve. It is better for customers who already know that noise, vibration, or trim damage is a problem.

Yuhong Valve controls the main production steps in our factory. The valve body, plug, seat, cage, and stem are processed with CNC equipment. The cage holes must be clean and even. The plug and cage fit must be checked carefully. A bad fit can cause vibration, leakage, or poor movement.

Each valve can be tested before delivery. The test items can include shell pressure test, seat leakage test, stroke test, actuator movement test, and appearance inspection. For project orders, we can also supply material certificates, test reports, drawings, and inspection photos.

Our production follows ISO 9001 quality management. The valve can be made according to IEC 60534, ASME B16.34, ASME B16.5, ANSI/FCI 70-2, GB, and other project standards.

Yuhong Valve uses export wooden cases for low noise cage guided valves. The valve body and actuator are fixed inside the case. The flange faces are covered to avoid damage. The positioner and accessories are protected from impact.

For long sea shipment, we can add moisture-proof packing. We can also provide packing photos before shipment. Shipping marks, model number, size, and order information can be printed on the case. This helps buyers check goods faster after arrival.

Yuhong Valve gives buyers more than a standard valve.

We help buyers reduce project risk. Our engineers check pressure, flow, temperature, and medium data before production. We calculate Cv and design the internal cage based on real working conditions.

We help buyers keep product consistency. We keep technical records for each order. Repeat orders can follow the same drawings, material, trim design, and inspection standard.

We help buyers control cost. A low noise cage guided control valve may cost more than a standard valve at first. It can reduce maintenance, site complaints, and unexpected shutdown later. This gives better long-term value.

We help distributors close deals. We can provide technical sheets, drawings, product photos, certificates, test reports, and packing photos. These documents help your customer trust the product faster.

We help buyers handle after-sales work. Our team can give installation advice, commissioning support, spare parts supply, and problem analysis. This is important for technical products used in industrial sites.

Expert Valve Selection

Do you need a Low Noise Cage Guided Control Valve for a high pressure drop or noisy pipeline system?

Send your medium, temperature, inlet pressure, outlet pressure, flow rate, pipe size, and noise requirement to Yuhong Valve. Our engineers will calculate the Cv value and prepare a valve proposal for your project.
