Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of single seat control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade single seat control valve from our factory.
Precision control, zero leakage, securing harsh pipelines
Shandong Yuhong's top-guided single-seat control valve is engineered for high pressure drops, severe erosion, and corrosive fluid environments. Backed by precise $Cv$ engineering calculations, digital flow simulations, and precision manufacturing within our 40-acre smart plant, our valves eliminate industry pain points like trim erosion, seat leakage, and thermal jamming. Fully certified to international standards, this highly reliable line features low failure rates, making it the ideal choice for global EPC contractors, system integrators, and valve wholesalers to reduce cross-border after-sales risks.
Product Overview

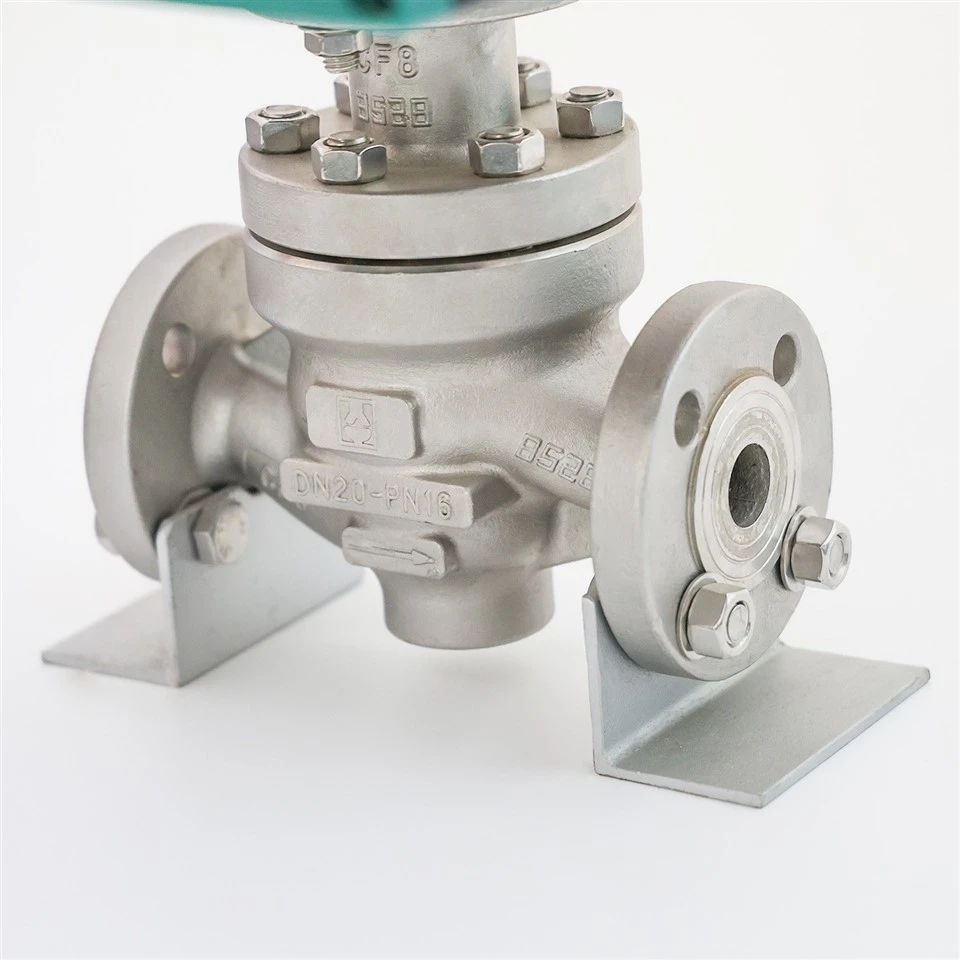

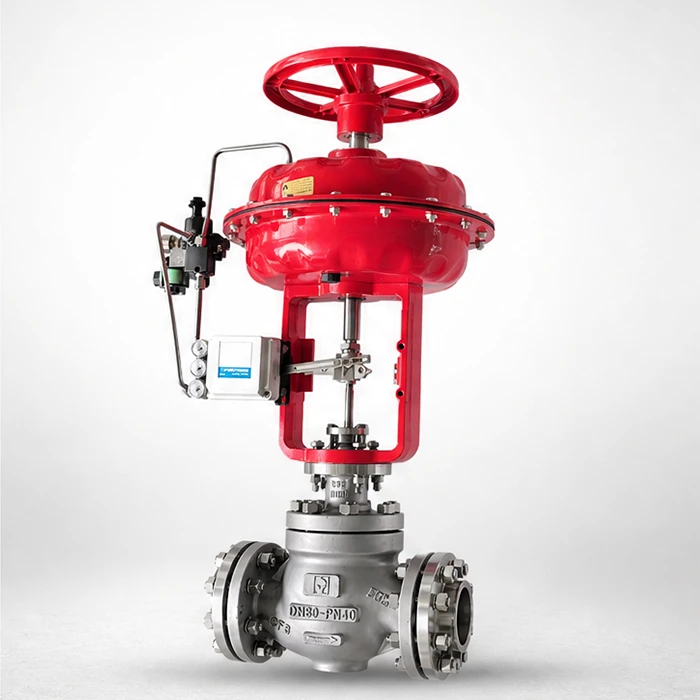

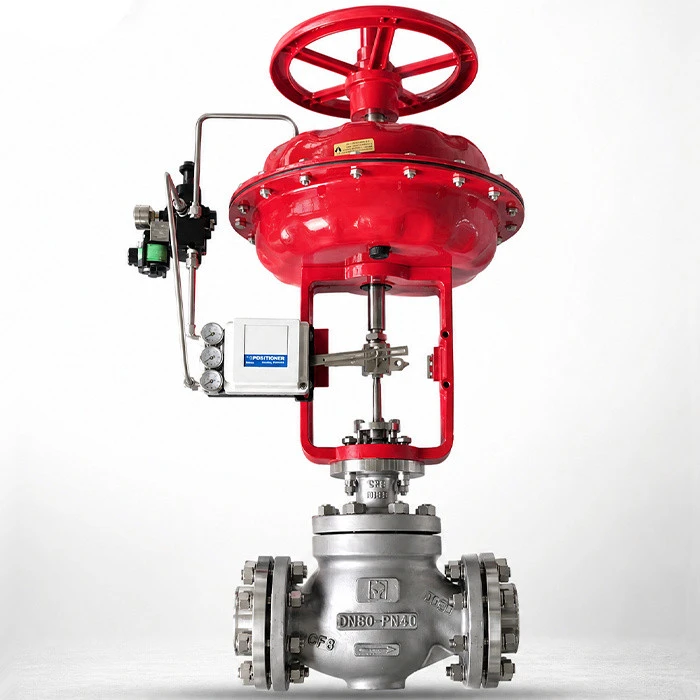

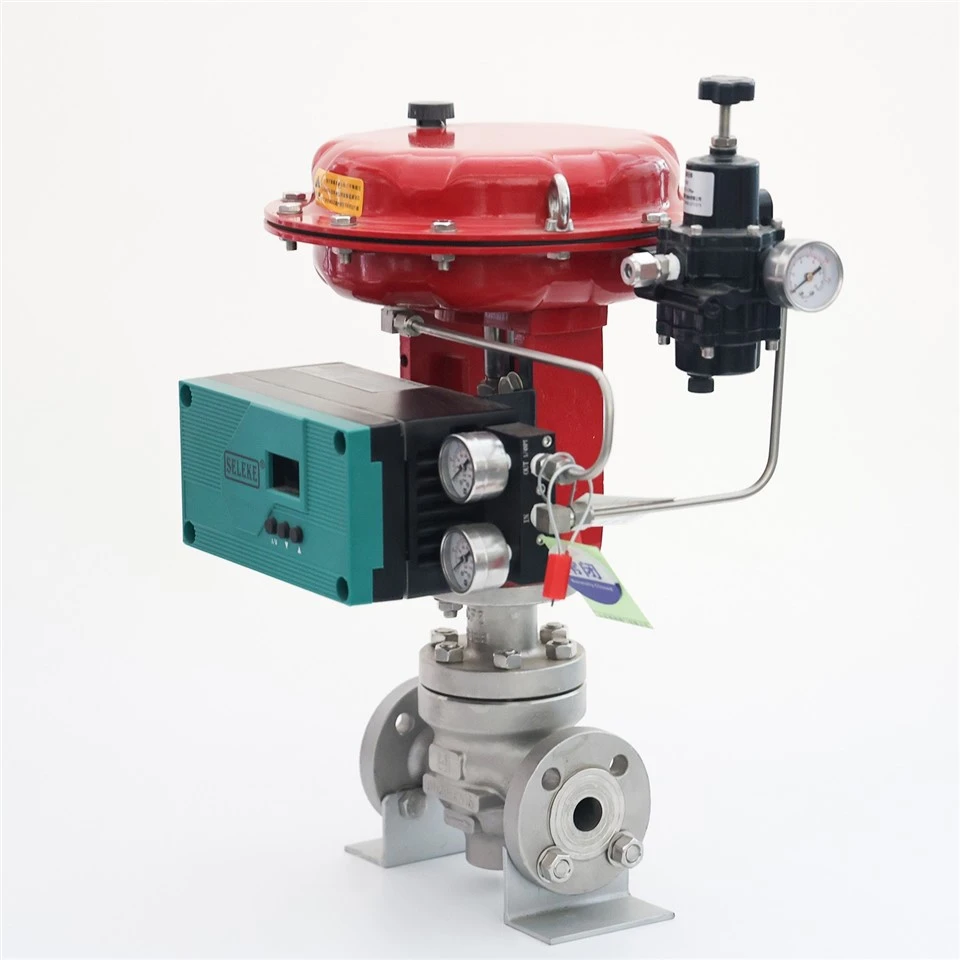

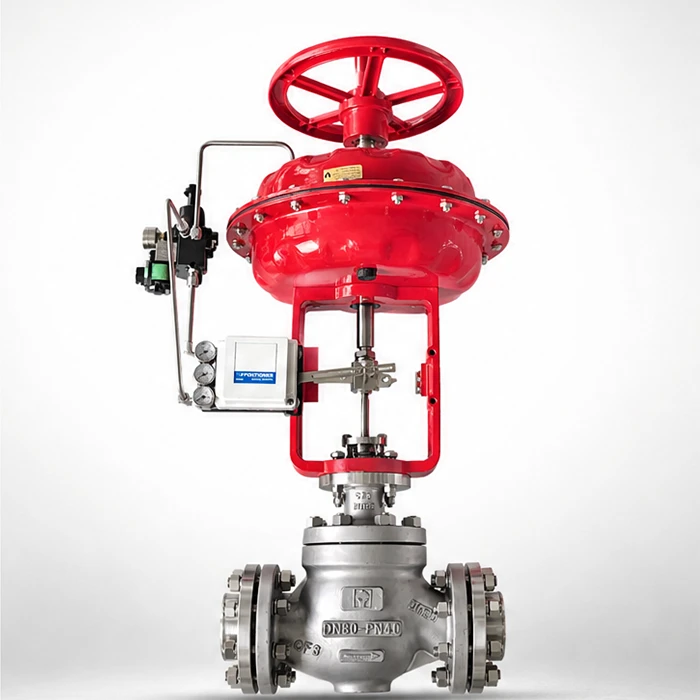

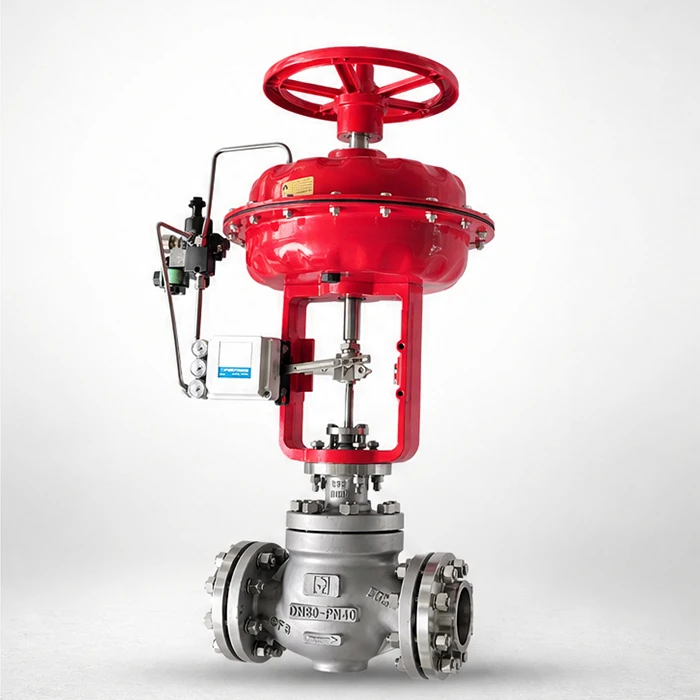

The single-seat control valve is a core throttling and isolation element in modern industrial process automation systems. This product features a classic top-guided, single-plug architecture integrated into an S-streamline internal valve body cavity. This geometric design naturally delivers low flow resistance, low pressure drop, high flow capacities, and a wide rangeability of up to 50:1. To deliver the exceptional vibration and fatigue resistance required in harsh working environments, the valve utilizes a heavy-duty top-guided plug structure. Its massive contact area paired with a high-strength guide bushing provides full-stroke rigid support for the axial movement of the plug, ensuring outstanding mechanical stability.
As an origin manufacturer integrating independent R&D, precision smart manufacturing, and global sales, Shandong Yuhong produces all control valves using standardized investment casting and multi-axis CNC precision machining. Material selection fully covers major international industrial material specifications, strictly adhering to Chinese national and industry standards (GB, HG) while supporting customized fabrication according to international codes including ANSI/ASME, DIN, JIS, and API 6D. Suitable for precise, continuous linear modulation or emergency safety isolation of liquids, gases, and high-temperature steam, this line features tight leakage classifications and long-term operational stability. It is widely utilized in global capital projects across oil refining, power generation, biopharmaceuticals, district heating, and water treatment, helping procurement managers eliminate downtime and safety risks right from the source.
Technical Specifications
If your process conditions exceed standard single-seat valve capabilities, our engineering team can custom-build sleeve-guided control valves, low-noise cage-guided control valves, high-temperature control valves, high-pressure control valves, or self-operated pressure regulating valves in the same factory. We will customize the most suitable valve for you.
|
Item |
Specifications & Customization Range |
|
Nominal Size |
DN15 ~ DN400 (Coverage: 1/2" ~ 16") |
|
Pressure Ratings |
PN16 ~ PN160 / Class 150 ~ Class 1500 |
|
End Connections |
Flanged (RF, RTJ), Butt-Welded (BW), Socket-Welded (SW) |
|
Body Materials |
Carbon Steel: WCB, A105; Stainless Steel: CF8, CF8M, CF3, F304, F316L; Low-Temp Steel: LCC; Alloy Steel: WC6, WC9 |
|
Trim Materials |
Standard 304, 316, 316L Stainless Steel; Stellite alloy hard-facing weld overlay available based on process conditions |
|
Flow Characteristics |
Equal Percentage, Linear, Quick-Opening |
|
Leakage Class |
ANSI/FCI 70-2 Class IV, Class V (Metal-to-Metal Hard Seal); Class VI (Advanced Soft Seal, Zero Leakage) |
|
Bonnet Type |
Standard (Ambient), Bellows Sealed (Zero Fugitive Emissions), Extended (High-Temp/Cryogenic), Fin-Extension (High-Temp Steam) |
|
Media Temperature |
-196°C ~ +538°C (Scientifically selected based on materials, bonnet types, and sealing structures) |
Core Product Advantages
Advanced Engineering & Hardened Construction
Our single-seat control valves utilize a heavy-duty, large-diameter top guide bushing. The axial movement of the plug is fully constrained with uniform mechanical clearances, maximizing resistance to plug deflection caused by fluid shear forces. Manufacturing takes place in Yuhong's 40-acre smart plant equipped with over 50 high-precision CNC machine tools, locking machining tolerances within a strict 0.01mm standard. Moreover, the valve plug and seat sealing faces use a Stellite hard alloy weld overlay process. This process increases the resistance of the valve trim against erosion and galling. Before prototyping, our technical team uses advanced digital R&D platforms to run Computational Fluid Dynamics (CFD) simulations, validating design reliability under virtual field conditions before launching physical production.
Mechanical Stability & Zero-Defect Inspection
The rigid top-guided structure keeps the plug on a stable stroke trajectory even under high pressure drops and turbulent conditions. This layout effectively neutralizes pipeline resonance, ensuring zero stem deflection and zero plug jamming. To guarantee quality, Yuhong enforces a rigorous quality chain utilizing Non-Destructive Testing (NDT). Post-machining, all components undergo mandatory optical spectrum analysis, magnetic particle testing, and ultrasonic testing to eliminate subsurface flaws, yielding a Mean Time Between Failures (MTBF) that far exceeds generic market valves. Additionally, our engineering team, led by a Chief Engineer with over 30 years of experience, pre-evaluates severe field conditions to optimize internal geometry or configure multi-stage layout elements, eliminating risks like flashing, cavitation, and high noise levels.
Total Cost Reduction & Portfolio Integration
Our exceptionally low failure and return rates protect project profit margins for overseas distributors and EPC contractors by eliminating complex cross-border after-sales disputes, reverse logistics, and re-customs clearances. The tight sealing performance (Class V for hard seals, Class VI for soft seals) completely cuts off internal leakage of high-value process media, lowering raw material waste. This extended valve service life shields automated lines from unexpected downtime, drastically cutting the Total Cost of Ownership (TCO). Furthermore, with a robust annual capacity of 50,000 control valve sets, our product range spans control valves, ball valves, butterfly valves, and pneumatic carbon steel flanged ball valves, allowing overseas clients to streamline their fluid procurement lines effortlessly.
Compliance & Traceable Quality
Our corporation operates under a comprehensive management framework certified to ISO9001 International Quality Management Systems, TS, TUV, and CE. All product lines fully comply with ANSI/ASME, API 6D, DIN, and JIS manufacturing standards. Our explosion-proof products and fire-safe products also carry all corresponding certifications. All finished products undergo mandatory pressure and type testing before leaving the factory, delivering fully traceable quality data to clear global engineering audits and customs inspections without delay.
Industry Applications & Fluid Solutions
Oil & Gas / Crude Extraction
For high pressure drops and media laden with particulate impurities, we provide a full Stellite alloy hard-faced plug solution. Its erosion-resistant, anti-vibration traits minimize pipeline maintenance intervals.
Biopharmaceuticals / Fine Chemicals
Featuring high-polish SS316L clean-grade valve bodies paired with fluoroplastic (PTFE/PPL) high-grade soft seals, this configuration meets 100% of industry demands for sterility and zero leakage.
Thermal Power / District Heating
For common fatigue conditions like high-temperature/high-pressure steam and boiler feedwater, we choose finned bonnets and die-formed graphite stem packing. This combination handles high temperatures and thermal shocks well, making it suitable for continuous operations.
Wastewater Treatment / Paper Making
For media containing mild acid or alkali corrosion, our valves can utilize specialized PTFE linings or corrosion-resistant alloys.
FAQ
Q1: How do you guarantee that the single-seat control valve perfectly fits my field conditions?
A: We do not sell generic standard valves. Our technical team, led by a Chief Engineer with over 30 years of fluid control experience, utilizes digital R&D platforms to calculate the precise $Cv$/$Kv$ flow coefficient based on your medium, pressure drop, temperature, and pipe size. Verified by fluid simulation, this ensures a 100% match with your field conditions.
Q2: What international manufacturing standards and certifications do your products meet?
A: Our single-seat control valves are engineered and inspected in strict accordance with global industrial standards including ANSI/ASME, API 6D, DIN, and JIS. Our corporation is certified under ISO9001, TUV, and CE. All series have passed mandatory explosion-proof and fire-safe testing, easily clearing global project qualifications and customs audits.
Q3: What is the maximum leakage class this single-seat control valve can achieve?
A: Standard metal-to-metal hard seals stably achieve ANSI/FCI 70-2 Class IV or Class V leakage standards for high-temperature and high-pressure applications. For zero leakage requirements, we can custom-build an advanced PTFE/PPL soft-seated structure to easily achieve Class VI absolute zero leakage.
Q4: What is the typical delivery lead time for orders?
A: For standard configurations, valves ship within 3 to 7 business days following payment. Standard customized orders maintain a delivery cycle of 10 to 15 business days. For large-scale international EPC project orders, we establish a dedicated production scheduling team to protect your critical construction milestones.
Expert Valve Selection
Sizing and selection errors do more than just degrade pipeline efficiency - they cause unexpected shutdowns, expensive repairs, and severe safety failures.
Contact Shandong Yuhong's senior application engineers today to receive a free, professional $Cv$/$Kv$ engineering calculation and data-driven valve selection service! Simply submit your actual field process parameters (pressure, flow rate, media, temperature, etc.), and we promise to provide an expert-approved technical selection proposal and an official formal quote within 2 hours, helping you secure a high-quality, zero-risk fluid control supply chain without delay.
