Shandong Yuhong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of steam control valve in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk high-grade steam control valve from our factory.

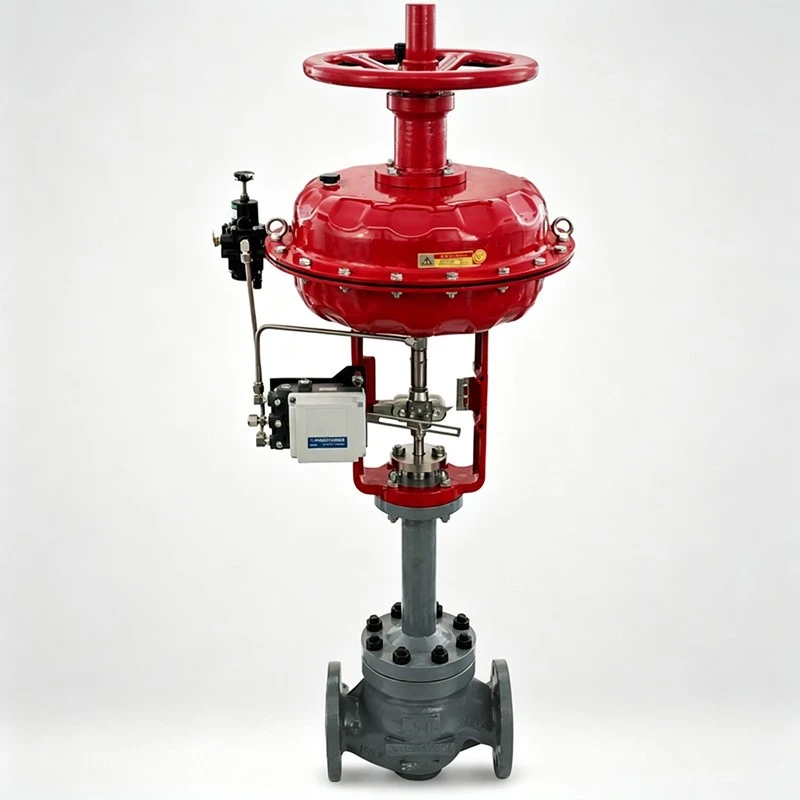

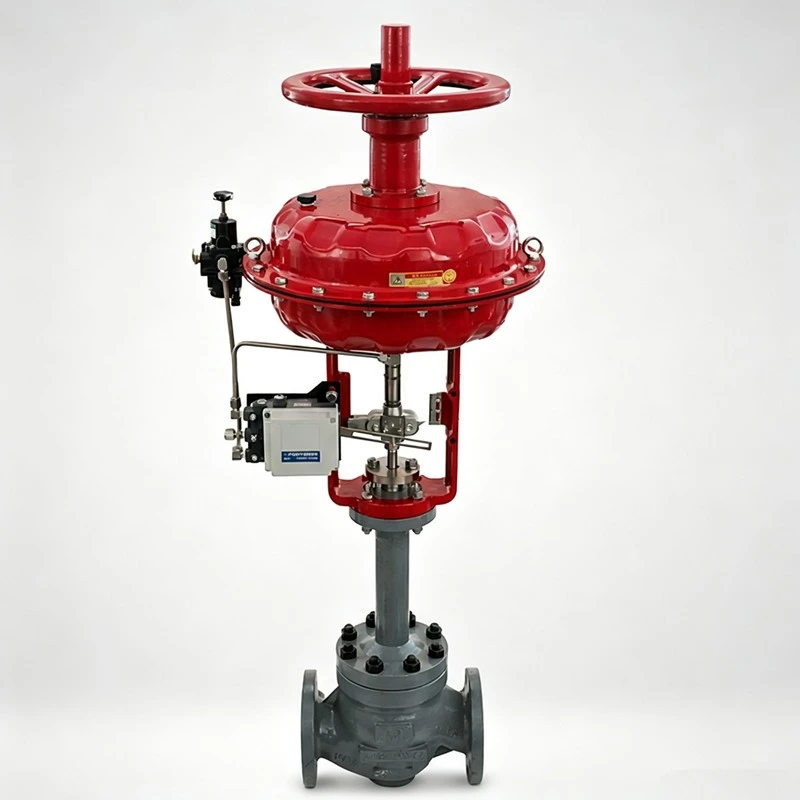

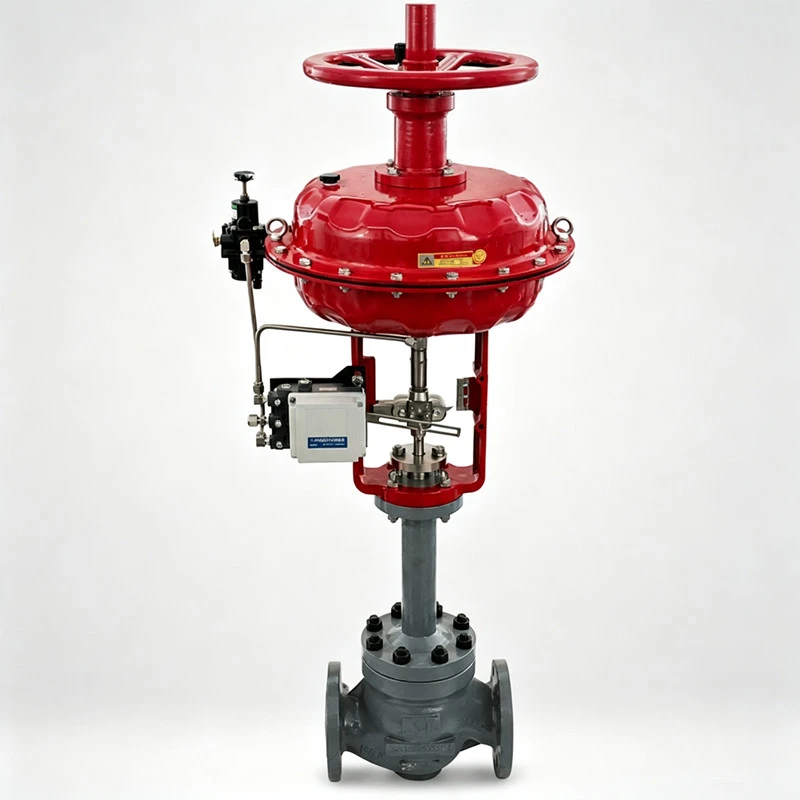

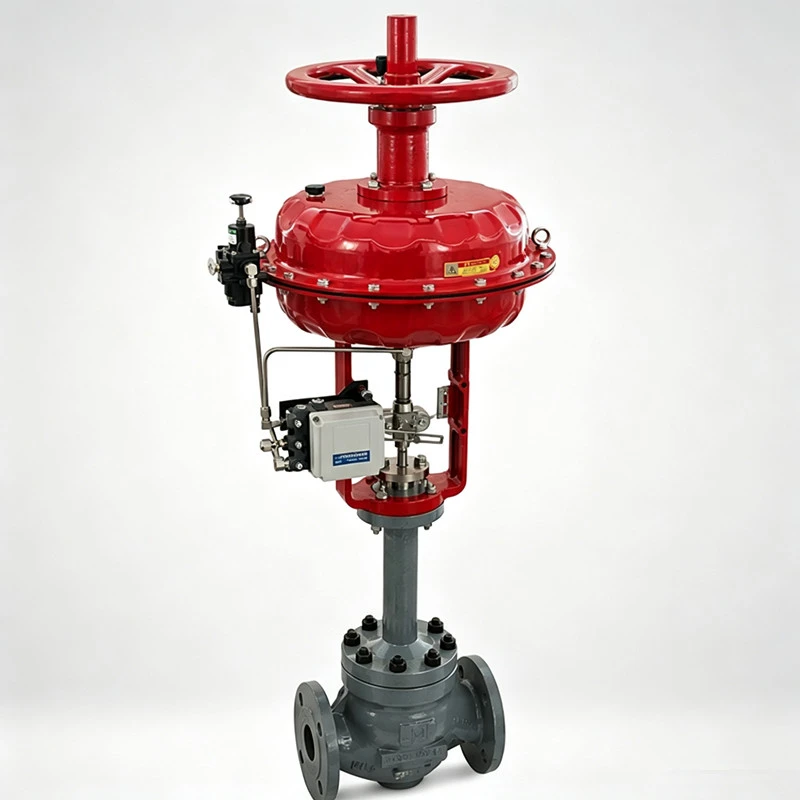

A steam control valve regulates saturated and superheated steam to hold pressure, temperature, or flow on spec. It is built for boilers, heat exchangers, steam distribution, food processing, paper mills, chemical plants, and industrial heating.
Steam is common but hard to control. Pressure swings fast, velocity runs high, and temperature stays elevated the whole run. A poorly designed valve wears its trim quickly, gets noisy, and lets unstable control ripple through the process.
Every steam duty differs - low-pressure heating steam versus high-pressure superheated, frequent cycling versus long fixed-position hold. Pressure class and pipe size alone do not select the valve. We review operating pressure, steam temperature, inlet and outlet pressure, flow, pipe size, and control needs, then calculate Cv from the real data. When the Cv comes in below line capacity, we optimize the trim or narrow the flow passage while keeping the body to pipe size - better accuracy with no piping change.
Technical Parameters
|
Item |
Standard Options & Custom Range |
|
Product Name |
Steam Control Valve |
|
Valve Type |
Globe Control Valve |
|
Size Range |
DN15–DN400 (1/2"–16") |
|
Pressure Rating |
PN16–PN420 / ANSI Class 150–2500 |
|
Body Material |
WCB, WC6, WC9, CF8, CF8M, Alloy Steel |
|
Trim Material |
304, 316, 17-4PH, Stellite Hard Facing |
|
Seat Type |
Metal Seat |
|
Flow Characteristic |
Equal Percentage, Linear |
|
Bonnet Type |
Standard, Extended, Heat Dissipation Bonnet |
|
Packing |
Flexible Graphite |
|
Connection |
Flanged, Butt Weld |
|
Actuator |
Pneumatic Diaphragm, Pneumatic Piston, Electric |
|
Leakage Class |
ANSI/FCI 70-2 Class IV, Class V |
|
Applicable Media |
Saturated Steam, Superheated Steam |
|
Design Standards |
IEC 60534, ISO 9001, ASME B16.34, ANSI/FCI 70-2 |
Key Features
Built for Steam
Steam is not water. As it passes the trim, velocity can jump and gradually erode the seating faces. We choose trim material from the condition, and on severe service we put Stellite hard-facing on plug and seat to hold wear down.
Stable Under Changing Load
Steam demand moves through the day - lines start and stop, exchangers open and close, boiler output tracks plant load. The valve has to answer smoothly, not lurch. Steady stem travel prevents sudden pressure swings and keeps the loop on setpoint.
Quieter Pressure Reduction
Big pressure drops make aerodynamic noise inside the line, worse as the valve throttles. For high differential we fit low-noise or multi-stage trim to bring velocity down and cut the noise at the source.
Easy Maintenance
Steam systems have scheduled shutdown windows, so the trim is built for quick in-place inspection and replacement - no need to change the body. Lower cost, shorter outage.
Applications
- Boiler steam distribution systems
- Heat exchanger temperature control
- Steam pressure reducing stations
- District heating networks
- Food sterilization equipment
- Paper drying systems
- Textile dyeing lines
- Pharmaceutical production
- Chemical reactors
- Industrial heating equipment
Manufacturing & Quality Control
Every valve is built under our quality system:
- Body inspected before machining
- Trim CNC-machined for dimensional accuracy
- Hydrostatic test, seat leakage test, stroke test, actuator calibration, and visual inspection before shipment
On request we supply Material Test Certificates, pressure test reports, dimensional drawings, and inspection records.
Packaging & Shipping
Valves ship in export wooden cases rated for international transit. Flange faces get plastic covers and internals stay clean. Large valves have the actuator secured against movement, and we send packing photos before delivery so you can confirm the shipment.
Procurement Notes
Pressure rating is not enough
Steam temperature, pressure drop, operating frequency, flow range, and install position all shape the selection.
Plan the maintenance window
Many plants stop only once or twice a year. A valve with replaceable internals makes those short windows far easier.
Watch pressure-reducing stations
At a steam PRDS, outlet noise and vibration come from the trim, not the body - so trim design outweighs everything else there.
FAQ
Q1: Can this valve handle both saturated and superheated steam?
Yes. Body, trim, and packing are selected from the actual steam temperature and pressure.
Q2: Why do steam valves use metal seats?
Steam runs hot. Metal seats last longer and hold up better than soft seats at temperature.
Q3: What causes excessive noise in a steam control valve?
Large pressure differences raise velocity inside the valve. The right trim design brings that noise down.
Q4: Can the trim be replaced after years of operation?
Yes. In most cases plug, seat ring, cage, and packing are all replaceable during maintenance.
Q5: Is insulation recommended?
Most steam lines are insulated. Account for the bonnet and actuator area at design time so insulation does not block maintenance.
Q6: What do you need to quote?
Steam temperature, inlet pressure, outlet pressure, flow rate, pipe size, pressure class, and leakage requirement.
Why Choose Yuhong Valve
Steam asks a lot of every part - continuous heat with stable regulation, where material, trim design, and machining accuracy decide how long the valve lasts. We review each project instead of shipping one standard config: our engineers read the conditions, calculate Cv, and pick the trim from the actual pressure drop and flow.
We stay with you through the project. Drawings, inspection reports, pressure test records, and material certificates are supplied before shipment, and production records are kept so repeat orders and spares match the original. The aim is a valve that holds up in real steam service, not one that only meets the catalogue.
Expert Valve Selection
Need a reliable Steam Control Valve for your boiler, heat exchanger, or industrial steam system?
Send us steam temperature, inlet pressure, outlet pressure, flow rate, and pipe size. We will calculate the Cv and recommend the trim that fits.
